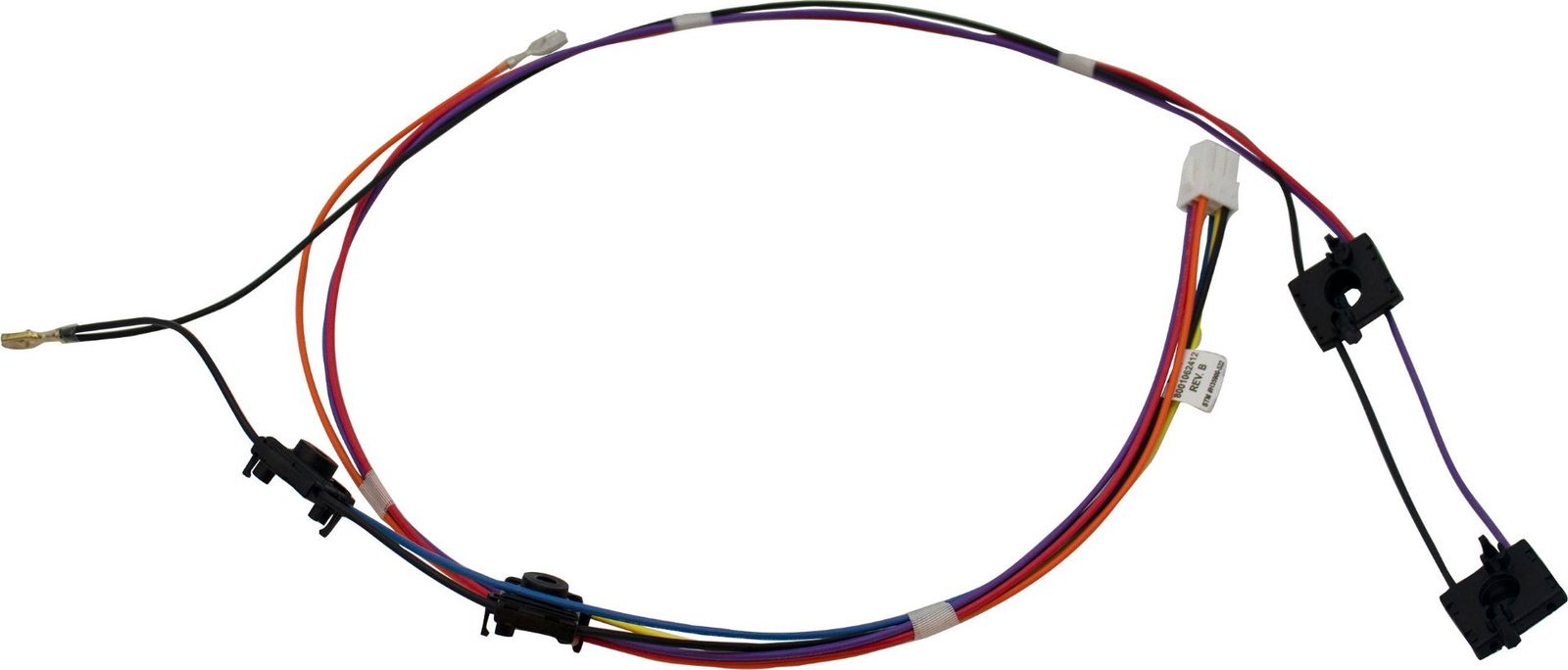

Part 12029898 Range Wiring Cable Harness
Purpose
Transmits electrical power and signals.
Details
This genuine OEM wiring cable harness serves as the primary electrical conduit system inside the range. It links the main control board to various operational components, including heating elements, surface igniters, safety valves, and temperature sensors. By delivering precise voltage levels and communication signals across the appliance, it ensures correct cycle timing and cooking performance. Over time, internal wires can fracture from thermal expansion, short out due to structural vibrations, or sustain damage from localized overheating. Symptoms of failure include specific control panel error codes, total loss of power to sections of the range, or surface burners that fail to ignite or heat up.
Included Items
Includes one insulated multi-wire cable harness assembly with pre-attached terminal plug connectors. Clips and zip ties should be retained from the original installation framework.
Compatible Brands
Bosch, Thermador, Gaggenau
Replaces
12029898, BSH-12029898, PS16221963
Highlights
- Genuine OEM part
- Application: Range power distribution and control systems
- Purpose: Forwards electrical logic and current to system components
- Installation difficulty: Hard
Safety Note
Always disconnect power before servicing. Follow model-specific diagrams and safety instructions for installation.
